ecg-records

ecg-records measures 12-lead (or 1–8 channel) electrocardiograms and emits a small, versioned JSON document, the ECG Record. It contains record-level intervals, axes and rhythm measures, median-beat values per lead, per-beat fiducial points, intervals and amplitudes, signal quality and full provenance, all in raw-sample coordinates. Every value has an explicit unit, every missing value carries an explicit reason, every value has a stable address, and every field carries a validation status. It reads WFDB, EDF/BDF, CSV and NumPy files and draws clinical-format plots.

The Python import name is ecgfeat.

This software is research and engineering software. It is not a medical device and is not intended to diagnose, treat, cure, or prevent disease. Outputs require independent validation for the intended use and must not be used as a substitute for professional medical judgment. See Limitations and intended use.

pip install ecg-records            # NumPy + SciPy only
pip install "ecg-records[viz]"     # adds Matplotlib for ecgfeat.viz
pip install "ecg-records[all]"     # plots, pandas tables, Plotly, ecginterpret

import ecgfeat

signal = ecgfeat.load_example("lbbb")           # bundled PTB-XL record; or ecgfeat.read_signal("x.hea")
record = ecgfeat.ecg_record(signal)
print(record.summary())                         # global rate, P/PR/QRS/QT, QTc, axes

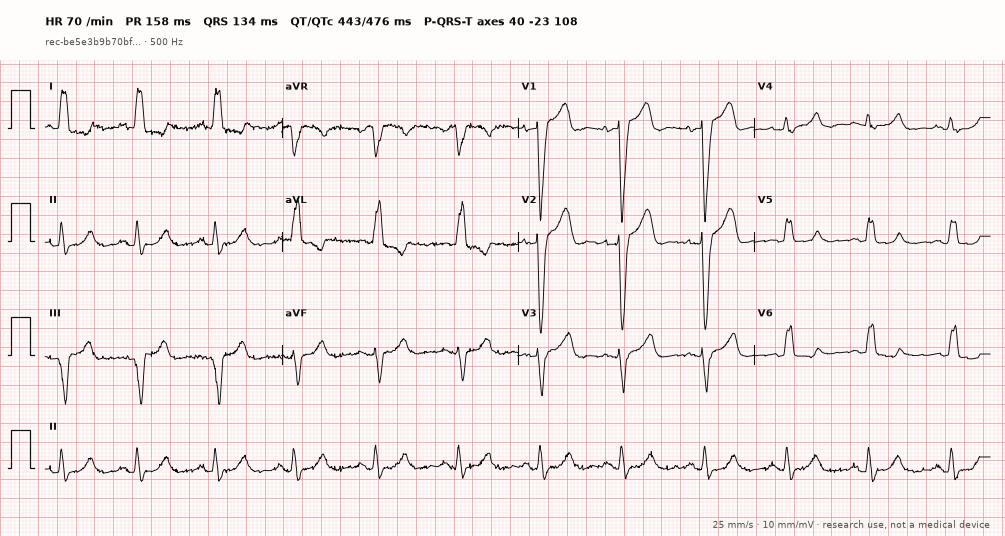

12-lead ECG paper view of the bundled LBBB example

What you get

  • One call from signal to record. ecg_record runs signal-quality assessment, multilead QRS detection, beat grouping, representative beats, delineation, atrial analysis and measurement. The result is a validated, immutable record.
  • Files in, records out. read_signal reads WFDB, EDF/BDF, CSV and NumPy files with their sampling rate and lead names; three example ECGs ship with the package.
  • A published, versioned format. The ECG Record (schema 1.1.0) ships with a JSON Schema. Records are canonical JSON: the same input always gives the same bytes. The default summary profile of a 10 s, 12-lead record stays under 30,000 bytes.
  • Three levels of measurement: record level (qt_interval_ms, qtc_fridericia_ms, p_axis_deg, ...), median beat per lead (median_st_60ms_uv, ...) and per beat and lead. Tables in one call: record.to_dataframe("global").
  • Honest missing values. A value is either measured, plain null, unmeasurable(reason) or not_applicable(reason). See Absence states.
  • Stable addresses. Every value has an address such as ecg-record:<id>@1.1.0#/measurements/intervals/qrs_duration_ms/values/3/6 that you can cite and resolve later (Querying).
  • Provenance and validation status on every field, so no value looks more trustworthy than it is. The record-level P duration, PR, QRS and QT are benchmark-validated against IEC 60601-2-25 limits (Validation).
  • Plotting of (signal, record) pairs with ecgfeat.viz: ECG paper at true scale, median beats, ST and rhythm views, light and dark themes. Matplotlib stays optional: import ecgfeat never loads it.
  • A command line for measuring files, summaries, tables, plots and process-parallel batch runs (CLI).

Where to go next

If you want to… Read
install the package Installation
measure your first ECG in five minutes Quickstart
know what the signal must look like Preparing input signals
understand every member of a record The ECG Record
read values, iterate beats and leads, resolve addresses Reading and querying records
store records, use NPZ sidecars Saving and loading
draw waveforms with annotations Plotting
process many files from a shell Command line
know how fast it is Performance
tune the pipeline Configuration
handle errors programmatically Errors and warnings
move off the legacy ECGFeatureExtractor API Migration guide
look up a signature API reference
work on the library itself Developer guide

Package facts
Distribution ecg-records on PyPI
Import name ecgfeat
Current release 0.3.2
ECG Record schema 1.1.0 (reads every 1.*)
Python 3.10 – 3.14
Runtime dependencies NumPy ≥ 1.26, SciPy ≥ 1.11
Optional extras viz (Matplotlib), table (pandas, pyarrow), interactive (Plotly), performance (Numba), wfdb (exotic WFDB layouts), interpret (the separate ecginterpret distribution), all
License ecg-records Apache-2.0; ecg-records-engine PolyForm Noncommercial 1.0.0 or commercial (Licensing)
